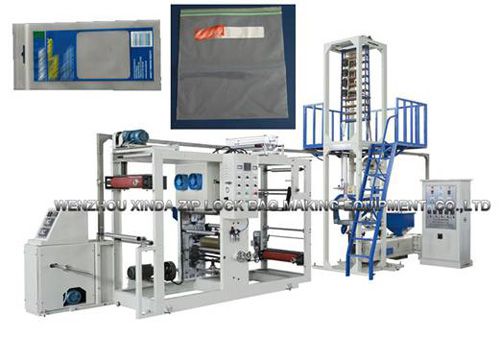

Film Blowing Printing Machine (Ziploc Bag Use)

Usage

• The film blowing printing machine is specially used for blowing film for printed zip lock bags.
• With spiral die head, the machine completes forming of film and zippers at one time, and finishes printing before reeling the film.
• The film blowing printing machine with 1-4 color printing can be tailor made for customers.

Request a Quote

• This film blowing printing machine integrates film blowing and printing of zip lock bags together, thus reducing waste products that result from a separate film blowing machine and a printing machine, saving labor cost and improving printing quality.
• This film blowing and printing combined machine covers less space.
• The machine makes use of spiral die head, which is designed by our company and has obtained the national patents.
• Made of superior alloy steel and created by chromate treatment, the charging barrel and screw of the machine feature strong resistance to abrasion, high temperature and deformation.
• With frequency control, the film blowing printing machine has stable performance.
• With automatic inflation modulation, the machine is much easier to operate.
• The tail frame of our machine adopts torque motor single reeling, which overcomes the shortcoming of overlength of similar machines in the domestic market, and saves much space and reduces the reject products.

Our film blowing printing machine, SJ-50C and film blowing printing machine, SJ-60C share the same film thickness of 0.03-0.22mm, screw ratio of 30:1, printing length of 220-1100mm, accuracy of registration of ±0.15mm, with the speed of 7-11meter/min, screw diameter of 50mm and 60mm respectively. For more detailed information, please refer to the data table above.

A major film blowing printing machine in China, Xinda mainly provides a line of grip seal bag machinery and zipper machines. In addition to the film blowing printing machine used for ziploc bags, we also provide the hot cutting bag making machine, film blow machine, plastic injection molding machine, and more, which are CE certified. Moreover, located in the economic development zone in Ruian city, our company has easy access to convenient transportation, as we are close to the National Highway 104, 28 kilometers from the Wenzhou airport, and 30 kilometers from the Wenzhou railway station. As a result, our transportation cost is largely lowered and your procurement cost can be effectively reduced as well. If you are in need of high quality reasonably priced zip lock bag making equipment, please feel free to contact us and try our products. We at Xinda are confident that you will be satisfied with your purchase.
